Link WireIn G4X MonsoonX ECU

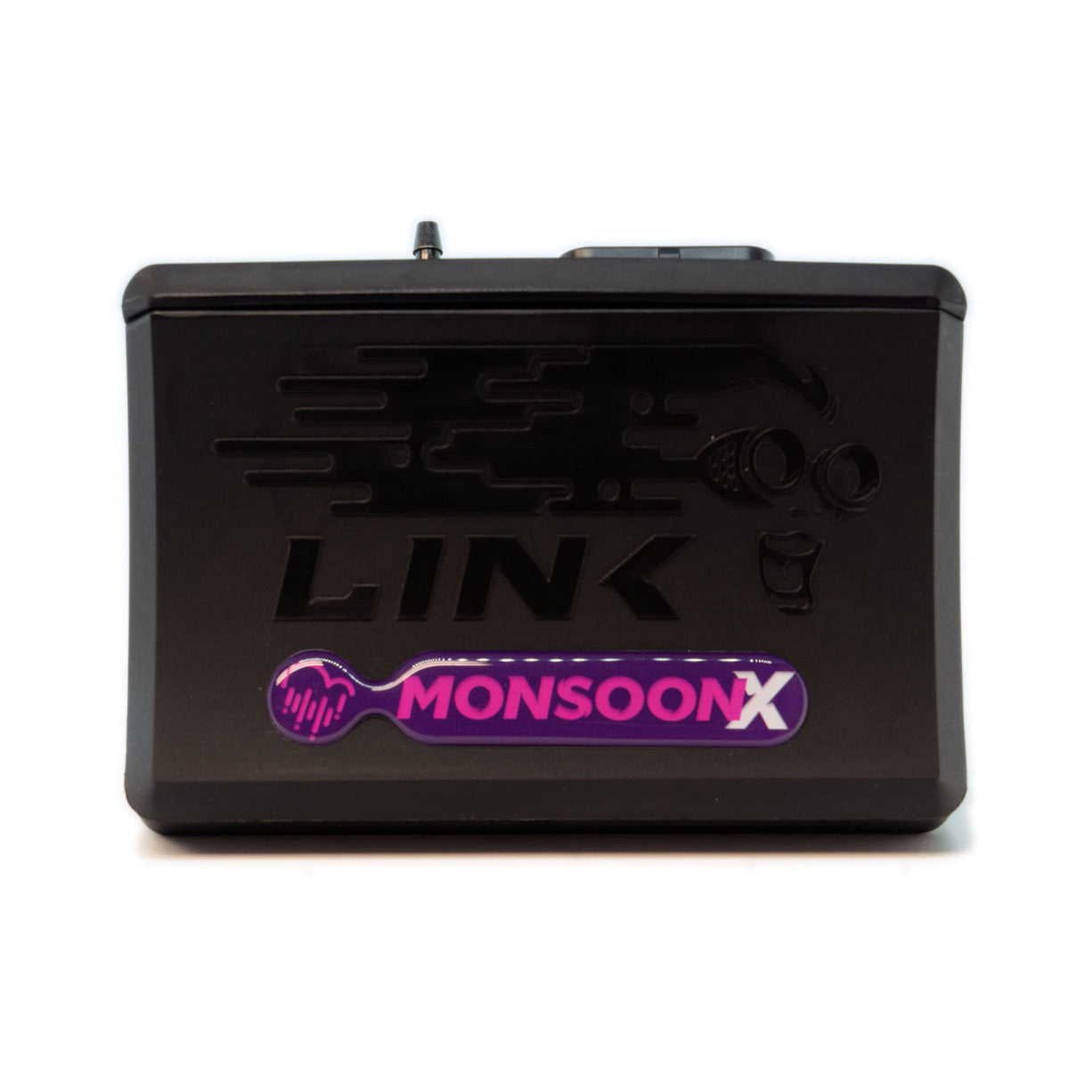

Link WireIn G4X MonsoonX ECU SpecificationsThe Link WireIn MonsoonX ECU is an entry-level G4X model ideal for turbocharged 4 cylinders or 2 rotors engines with sequential injection and direct spark (or up to 8 cylinders with wasted spark). It is ideal for an engine retune requiring additional functions compared to the AtomX but without justifying the switch to a more advanced ECU of the brand.Like all G4X ECUs the MonsoonX is equipped with a powerful 150 MHz processor a high-performance chip for fast communications and 512 Mb of memory for data logging. Each G4X model supports Flex Fuel and knock control. The MonsoonX is distinguished by its extensive functions (launch control anti-lag VVT control closed loop boost control...) and by its integrated 4 or 7 bar MAP sensor.The MonsoonX has 4 injector and 4 ignition drives 4 digital and 4 analog inputs 2 temperature inputs and 6 auxiliary outputs. The unused ignition drives can be used as additional auxiliary outputs.This ECU supports the CAN bus protocol (1 channel) and has a USB connectivity (cable supplied). The configuration requires a PC and is done with the PCLink software (downloadable from the manufacturer's website). Mapping must be done by a professional.Very compact the MonsoonX measures 95 x 130 x 45 mm and weighs only 220 grams. Feel free to consult all the technical information on the official manufacturer's website.Further information: "A" loom (sold separately) needed to install the ECU.G4X MonsoonX video overview:Comparison of the main features of the Link G4X and G4+ ECUs
