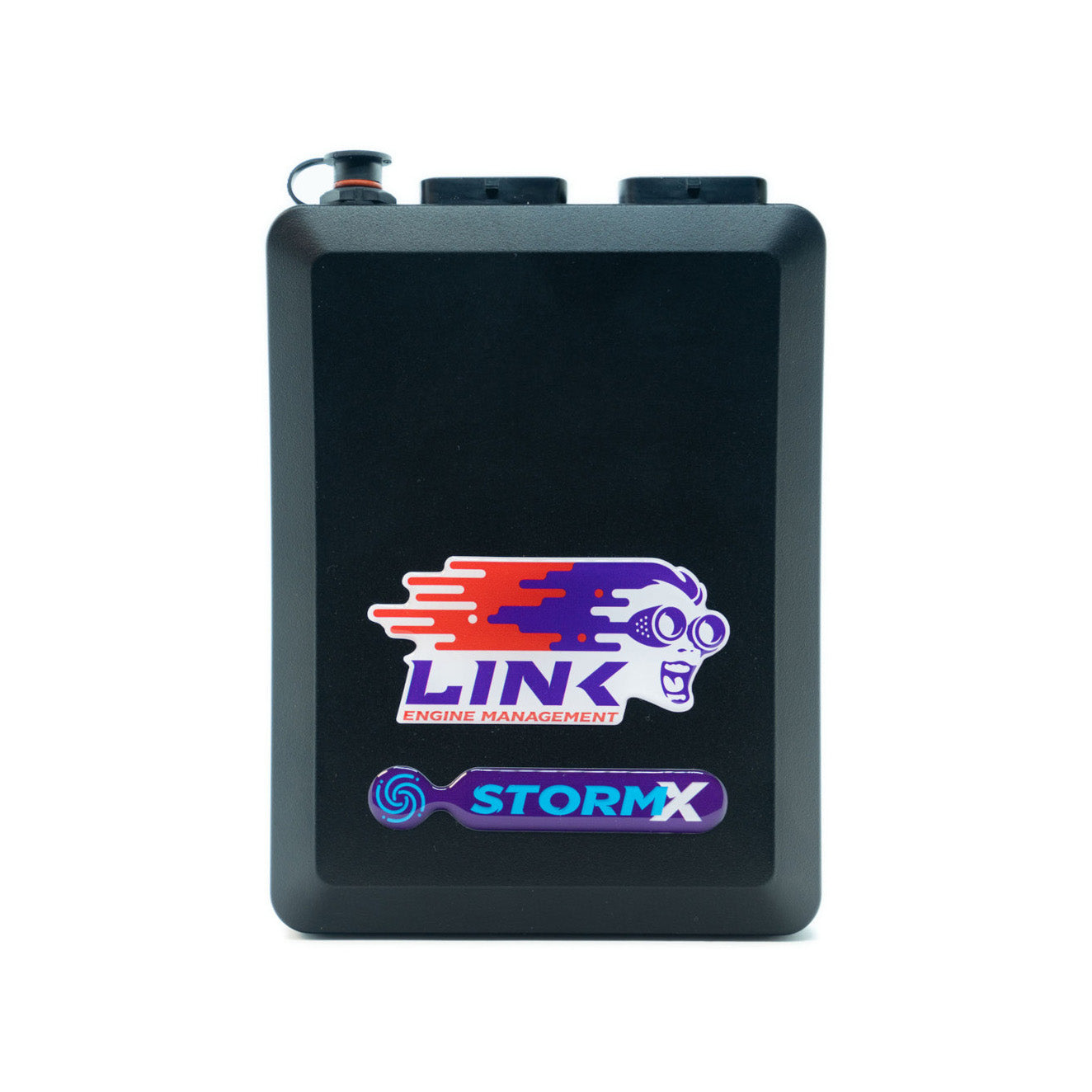

Link WireIn G4X StormX ECU

Link WireIn G4X StormX ECU SpecificationsThe Link WireIn StormX ECU is a mid-range G4X model ideal for 6 to 8 cylinders or 4 rotors engines with sequential injection and direct spark (or up to 12 cylinders with wasted spark). It is ideal for an engine retune requiring additional functions and inputs/outputs compared to the AtomX and MonsoonX but without justifying the switch to a more advanced ECU of the brand.Like all G4X ECUs the StormX is equipped with a powerful 150 MHz processor a high-performance chip for fast communications and 512 Mb of memory for data logging. Each G4X model supports Flex Fuel and knock control. The StormX is distinguished by its extensive functions (launch control anti-lag VVT control open and closed loop boost control shift control trigger oscilloscope on-board knock control stepper motor control...).The StormX has 8 injector and 8 ignition drives 8 digital and 8 analog inputs 3 temperature inputs and 8 auxiliary outputs. The unused injector and ignition drives can be used as additional auxiliary outputs.This ECU supports the CAN bus protocol (1 channel) and has a USB connectivity (cable supplied). The configuration requires a PC and is done with the PCLink software (downloadable from the manufacturer's website). Mapping must be done by a professional.Compact the StormX measures 170 x 130 x 44 mm and weighs only 680 grams. Feel free to consult all the technical information on the official manufacturer's website.Further information: "A" and "B" looms or "A" and "B" connector kits (sold separately) needed to install the ECU.G4X StormX video overview:Comparison of the main features of the Link G4X and G4+ ECUs
