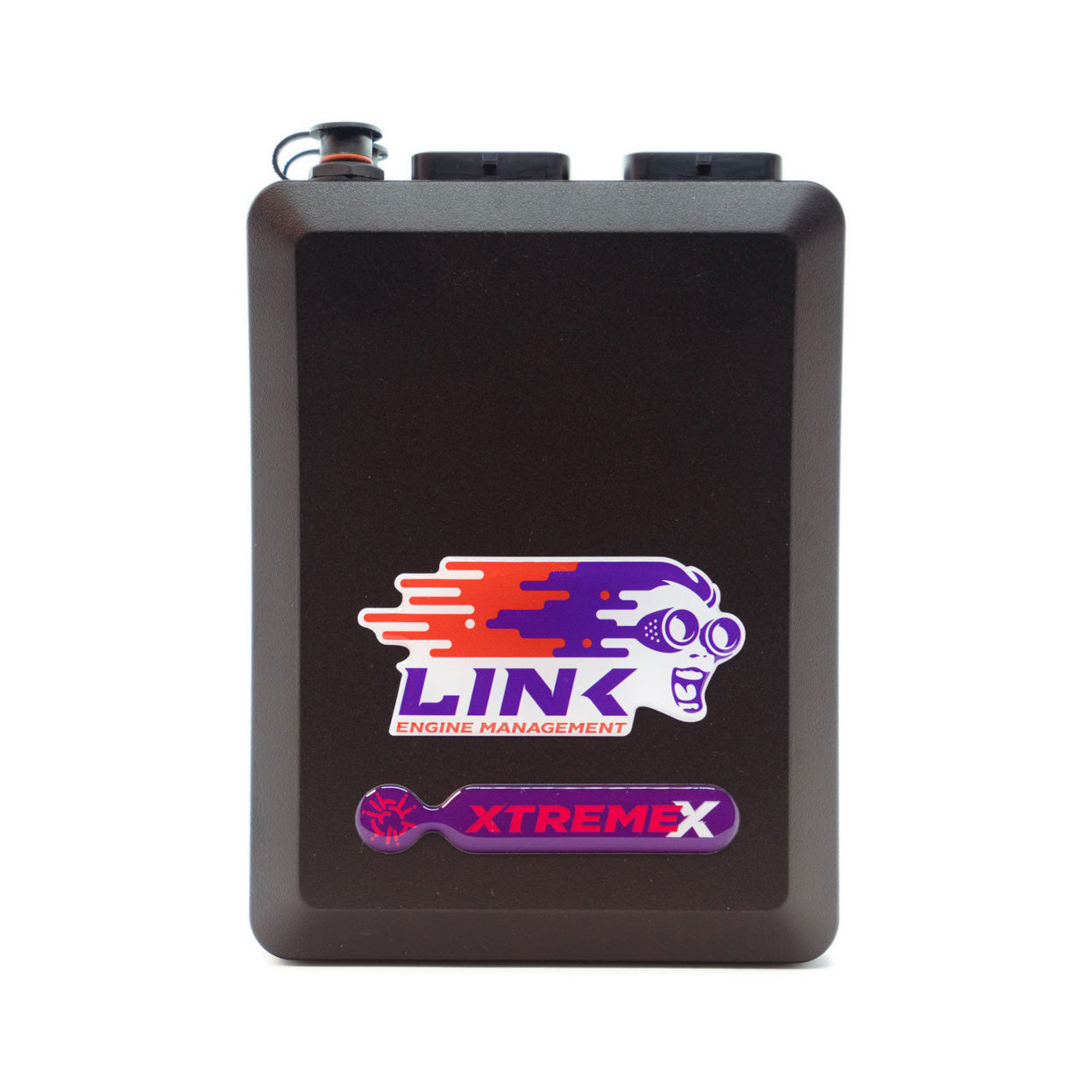

Link WireIn G4X XtremeX ECU

Link WireIn G4X XtremeX ECU SpecificationsThe Link WireIn XtremeX ECU is a high-end G4X model ideal engines up to 8 cylinders or 4 rotors with sequential injection and direct spark (or up to 12 cylinders with wasted spark). It is ideal for professional engine retune requiring additional functions and inputs/outputs compared to other less advanced models in the range.Like all G4X ECUs the XtremeX is equipped with a powerful 150 MHz processor a high-performance chip for fast communications and 512 Mb of memory for data logging. Each G4X model supports Flex Fuel and knock control. The XtremeX is distinguished by its extensive functions (launch control anti-lag VVT control open and closed loop boost control shift control trigger oscilloscope on-board knock control stepper motor control e-throttle traction control cruise control...).The XtremeX has 8 injector and 8 ignition drives 8 to 10 digital and 11 analog inputs 4 temperature inputs and 10 auxiliary outputs. The unused injector and ignition drives can be used as additional auxiliary outputs.This ECU supports the CAN bus protocol (2 channels) and has a USB connectivity (cable supplied). The configuration requires a PC and is done with the PCLink software (downloadable from the manufacturer's website). Mapping must be done by a professional.Compact the XtremeX measures 170 x 130 x 42 mm and weighs only 680 grams. Feel free to consult all the technical information on the official manufacturer's website.Further information: "A" and "B" looms (sold separately) needed to install the ECU.Comparison of the main features of the Link G4X and G4+ ECUs
