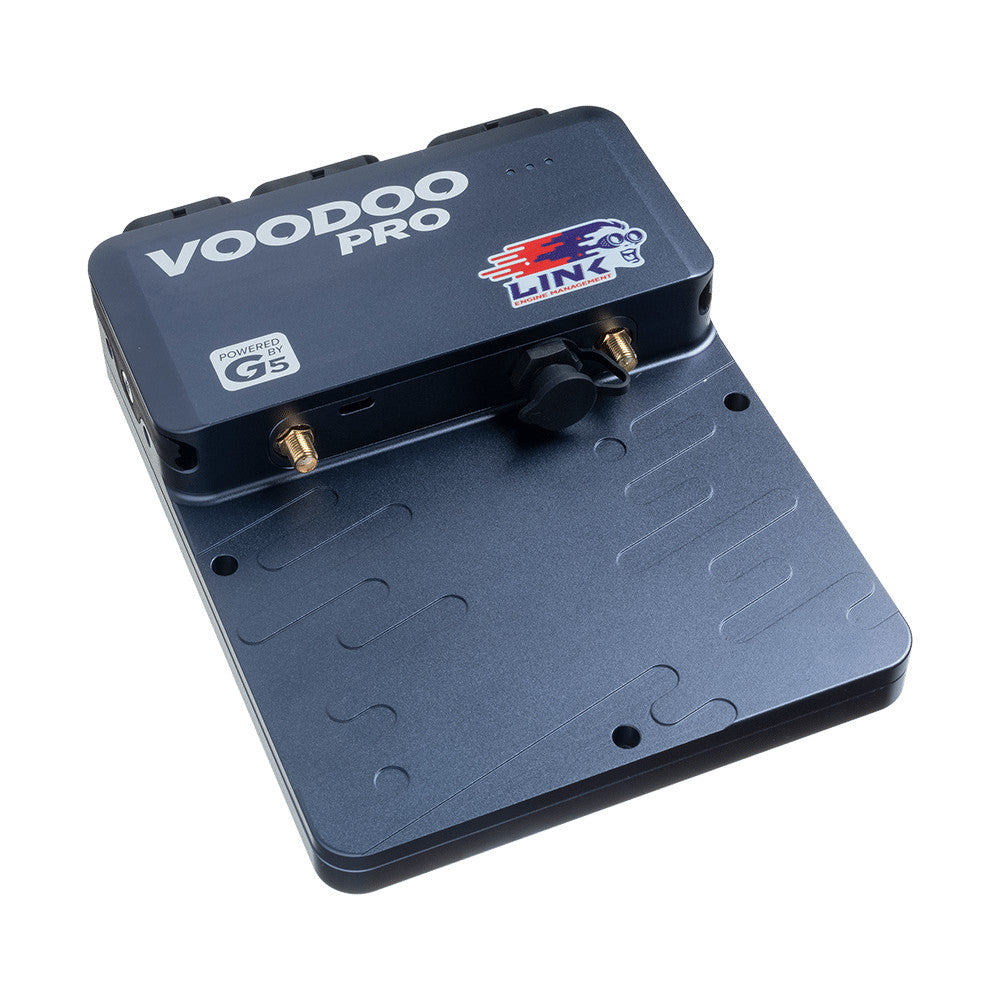

Link WireIn G5 Voodoo Pro ECU

Link WireIn G5 Voodoo Pro ECU SpecificationsThe Link WireIn G5 Voodoo Pro ECU is the manufacturer's most advanced powerful and flexible next-generation ECU. It opens up new tuning possibilities with the ability to control port injection as well as direct injection a large number of injector and ignition outputs advanced communications and many more features.Part of the new G5 range the Voodoo Pro features a dual microcontroller (one dedicated to running the engine and the other to communications) and 512 MB of memory for data logging. It supports Flex Fuel knock detection and a variety of other functions: launch control anti-lag traction control gearshift control (including with steering wheel paddles) closed-loop boost control NOS control 3-axis accelerometer speed limiter pop & bang etc. The Voodoo Pro also benefits from two on-board wideband digital lambda controllers is capable of managing two e-throttles and allows easy upgrading from a G4X ECU with the option of using the same loom or harness.The Voodoo Pro has 12 injector 8 ignition and 4 multi-purpose drives 14 digital and 10 analog inputs 4 temperature inputs and between 14 and 30 auxiliary outputs. The unused injector and ignition drives can be used as additional auxiliary outputs.This ECU supports Dual CAN bus and has USB connectivity (cable supplied). It also features a built-in GPS module (antenna included) and Wi-Fi as standard. The configuration requires a PC and is done with the PCLink software (downloadable from the manufacturer's website). Mapping must be done by a professional.Fully programmable the Voodoo Pro measures 177 1 x 137 3 x 40 2 mm and weighs 795 g. Feel free to consult all the technical information on the official manufacturer's website.Further information: Loom required for installation sold separately.Comparison of the main features of the Link G4X and G4+ ECUs
